    Dynaco PAS2 preamp wiring photo needed ..

    avatar
    RockyAM

    Posts : 26
    Join date : 2008-12-14

    Dynaco PAS2 preamp wiring photo needed .. Empty Dynaco PAS2 preamp wiring photo needed ..

    Post by RockyAM on Wed Aug 22, 2012 12:09 pm

    I just got a Dynaco PAS2 preamp from a fellow locally. He said he thought some work had been done on the preamp on the tone controls and maybe the power supply. I opened the preamp up and it looked like some wiring could have been changed but I can't be sure. I know that sometimes people have bypassed the tone controls and done other mods and wiring changes to the PAS preamps. Is there any photo of what the inside of a stock PAS2 should look like that maybe shows where the wires went? RockyAM
    Bob Latino
    Bob Latino
    Admin

    Posts : 2815
    Join date : 2008-11-26
    Location : Massachusetts

    Dynaco PAS2 preamp wiring photo needed .. Empty Re: Dynaco PAS2 preamp wiring photo needed ..

    Post by Bob Latino on Wed Aug 22, 2012 1:12 pm

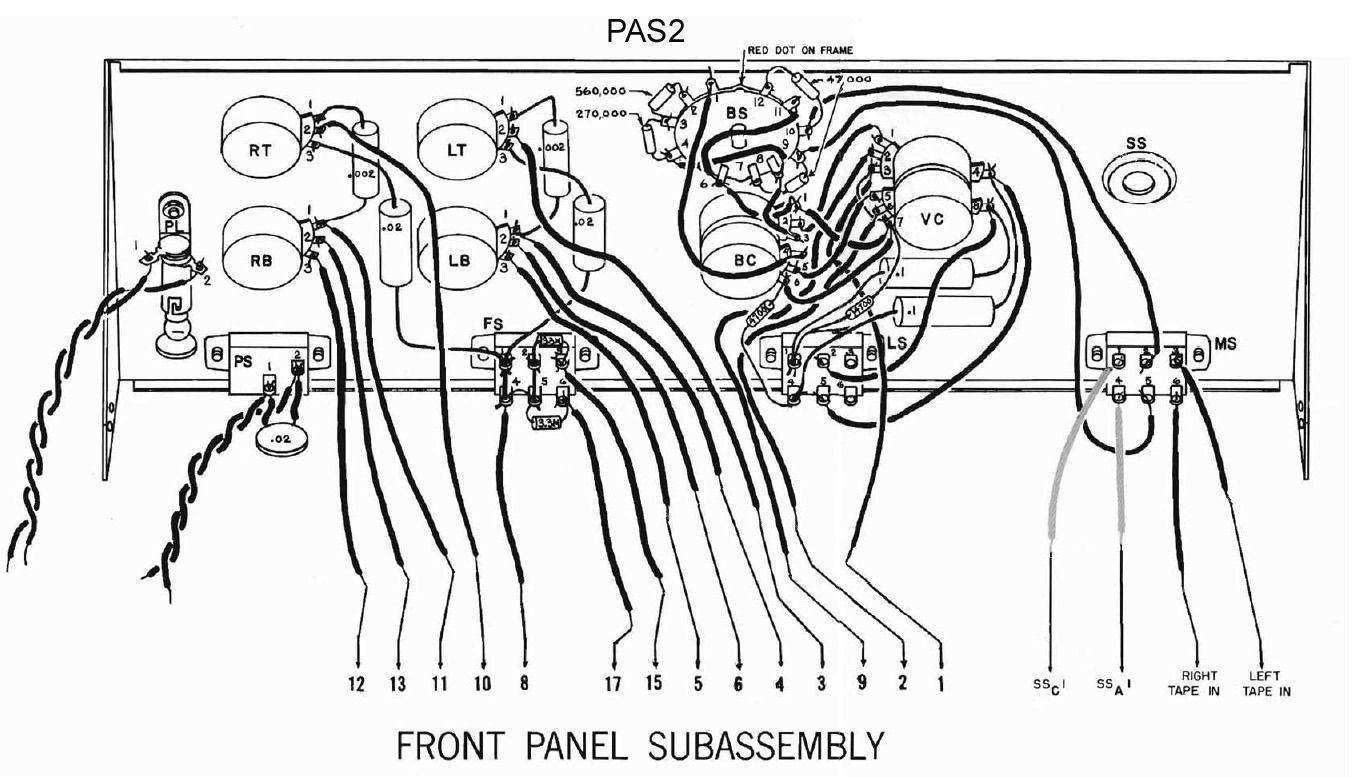

    Below is the original pictorial of the inside front panel of the Dynaco PAS-2 preamp. It's not a photo but it does show the wires and parts on the front panel. It also shows the wiring to the two boards inside the amp and to which numbered eyelet the wires go.

    Bob


    Dynaco PAS2 preamp wiring photo needed .. PAS2pictorialfrontpanel
