    FM-3 Motherboard

    denny9167
    denny9167


    Posts : 151
    Join date : 2011-05-09
    Age : 56
    Location : Texas

    FM-3 Motherboard Empty FM-3 Motherboard

    Post by denny9167 Wed Jan 16, 2013 10:32 pm

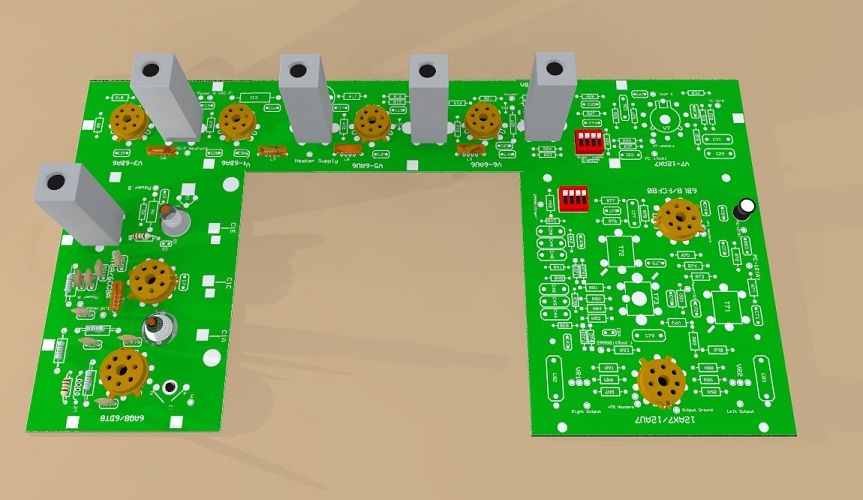

    Here is an image of what the FM-3 motherboard would look like. You'll notice that all 7-pin sockets in place,I made a mistake when I was editing the 9-pin,it changed all of them. You'll notice the DIP switches in place.

    [url=FM-3 Motherboard FM3_zps08af01bd][/url]


    Last edited by denny9167 on Thu Jan 17, 2013 7:39 am; edited 1 time in total
    Bob Latino
    Bob Latino
    Admin


    Posts : 3258
    Join date : 2008-11-26
    Location : Massachusetts

    FM-3 Motherboard Empty Re: FM-3 Motherboard

    Post by Bob Latino Wed Jan 16, 2013 10:49 pm

    Hi Denny,

    The mock up photo of your FM-3 board looks really good. When you get your first actual board made up post a photo of it on this thread. Having a single board like that with a single ground plane is much better idea than Dynaco's three separate boards.

    Bob
    denny9167
    denny9167


    Posts : 151
    Join date : 2011-05-09
    Age : 56
    Location : Texas

    FM-3 Motherboard Empty Re: FM-3 Motherboard

    Post by denny9167 Thu Jan 17, 2013 6:01 pm

    Bob Latino wrote:Hi Denny,

    The mock up photo of your FM-3 board looks really good. When you get your first actual board made up post a photo of it on this thread. Having a single board like that with a single ground plane is much better idea than Dynaco's three separate boards.

    Bob

    Bob,

    Will do,
    and yes a single ground will work really well, cleaning up some of the residual noise and help
    Some on the RF side. Thanks again

    Denny
