    SP9 / PH10 custom build

    Post by MontanaWay on Thu Apr 03, 2014 12:21 am

    Just a quick few photo's of my 'never ending' SP9 build, finally seeing the light at the end of the tunnel and it aint a train!!
    Just waiting for the transformer now, then fire her up!
    The transformer in the photo is just there for show.

     photo sp9fin4_zps02e2b0b1.jpg

     photo sp9fin2_zpse1db090f.jpg

     photo sp9fin_zps80875469.jpg

    peterh

    Posts : 643
    Join date : 2012-12-25
    Location : gothenburg, sweden

    Re: SP9 / PH10 custom build

    Post by peterh on Thu Apr 03, 2014 1:43 am

    You forgot the IEC well ...

    deepee99

    Posts : 1260
    Join date : 2012-05-23
    Location : Wallace, Idaho

    Re: SP9 / PH10 custom build

    Post by deepee99 on Thu Apr 03, 2014 10:38 am

    Sweet!

    sKiZo

    Posts : 1287
    Join date : 2013-04-01
    Location : Michigan USA

    Re: SP9 / PH10 custom build

    Post by sKiZo on Thu Apr 03, 2014 1:24 pm

    Very tidy and clean design ... I especially like the corner splines on the case, and the satin black is a real nice touch. Bonus points if it works!

    Is that the Mogami cable you used for the inputs? I got some but ended up sticking with twisted wire for my ST120 build ...

    Oh. And you forgot the IEC well ...  pirat


    MontanaWay

    Posts : 767
    Join date : 2014-02-06
    Age : 58
    Location : Cameron, Montana

    Re: SP9 / PH10 custom build

    Post by MontanaWay on Sun Apr 06, 2014 3:44 pm

    thanks people. I opted out of the IEC due to space constrains, probably could have gone with it, will see.
    Yes, it is Mogami, just made the wiring so much easier.
    The transformer arrived whilst we were away for a few days, so it will go in this afternoon and fire it up!

    deepee99

    Posts : 1260
    Join date : 2012-05-23
    Location : Wallace, Idaho

    Re: SP9 / PH10 custom build

    Post by deepee99 on Sun Apr 06, 2014 4:13 pm

    MontanaWay wrote:thanks people. I opted out of the IEC due to space constrains, probably could have gone with it, will see.
    Yes, it is Mogami, just made the wiring so much easier.
    The transformer arrived whilst we were away for a few days, so it will go in this afternoon and fire it up!

    I have alerted the Wallace Volunteer Fire Department; they are on standby.

    MontanaWay

    Posts : 767
    Join date : 2014-02-06
    Age : 58
    Location : Cameron, Montana

    Re: SP9 / PH10 custom build

    Post by MontanaWay on Sun Apr 06, 2014 4:42 pm

    deepee99 wrote:
    MontanaWay wrote:thanks people. I opted out of the IEC due to space constrains, probably could have gone with it, will see.
    Yes, it is Mogami, just made the wiring so much easier.
    The transformer arrived whilst we were away for a few days, so it will go in this afternoon and fire it up!

    I have alerted the Wallace Volunteer Fire Department; they are on standby.

    gee...thanks for the vote of confidence!  Shocked

    deepee99

    Posts : 1260
    Join date : 2012-05-23
    Location : Wallace, Idaho

    Re: SP9 / PH10 custom build

    Post by deepee99 on Sun Apr 06, 2014 4:46 pm

    MontanaWay wrote:
    deepee99 wrote:
    MontanaWay wrote:thanks people. I opted out of the IEC due to space constrains, probably could have gone with it, will see.
    Yes, it is Mogami, just made the wiring so much easier.
    The transformer arrived whilst we were away for a few days, so it will go in this afternoon and fire it up!

    I have alerted the Wallace Volunteer Fire Department; they are on standby.

    gee...thanks for the vote of confidence!  Shocked

    Well, the woods in the Bitterroots are still pretty damp, but ya cain't never be too sure.
    I had a fire extinguisher right next to me when I lit up my M-125s.
    Keep us posted. Anxious to hear of your impending delight.
    -d-

    sKiZo

    Posts : 1287
    Join date : 2013-04-01
    Location : Michigan USA

    Re: SP9 / PH10 custom build

    Post by sKiZo on Sun Apr 06, 2014 4:56 pm

    Well now, that could have gone better ...


    deepee99

    Posts : 1260
    Join date : 2012-05-23
    Location : Wallace, Idaho

    Re: SP9 / PH10 custom build

    Post by deepee99 on Sun Apr 06, 2014 4:58 pm

    sKiZo wrote:Well now, that could have gone better ...


    Or as the Aussies would say, "No worries, mate."

    colin86325

    Posts : 40
    Join date : 2014-04-01

    Re: SP9 / PH10 custom build

    Post by colin86325 on Sun Apr 06, 2014 7:19 pm

    Wow, she's a beauty Montana! Nicely done. Hope she sounds so sweet!

    deepee99

    Posts : 1260
    Join date : 2012-05-23
    Location : Wallace, Idaho

    Animals fear light-up of Montana Way's amp

    Post by deepee99 on Sun Apr 06, 2014 9:57 pm

    Large mushroom spotted just now from our lookouts in Lookout Pass on the Idaho-Montana border. Trust these events are not connected with the ignition of an SP-9.

    http://rt.com/usa/epoch-bison-yellowstone-volcano-909/

    MontanaWay

    Posts : 767
    Join date : 2014-02-06
    Age : 58
    Location : Cameron, Montana

    Re: SP9 / PH10 custom build

    Post by MontanaWay on Sun Apr 06, 2014 10:07 pm

    weeeeelllllll...hate to admit it, but I did screw up the transformer wiring, almost double the output voltage than what it should be....not the toroid but a 'standard' transformer.....result, no mushroom cloud, but blown voltage reg & power transistor. Replacement components are coming.
    If I had brains it would be dangerous!.....D'OH!!!!!!!!!

    deepee99

    Posts : 1260
    Join date : 2012-05-23
    Location : Wallace, Idaho

    Re: SP9 / PH10 custom build

    Post by deepee99 on Sun Apr 06, 2014 10:13 pm

    MontanaWay wrote:weeeeelllllll...hate to admit it, but I did screw up the transformer wiring, almost double the output voltage than what it should be....not the toroid but a 'standard' transformer.....result, no mushroom cloud, but blown voltage reg & power transistor. Replacement components are coming.
    If I had brains it would be dangerous!.....D'OH!!!!!!!!!

    I will tell the elk and buffalo it's OK to go back to Montana, then. They're messing up our newly-paved streets.

    MontanaWay

    Posts : 767
    Join date : 2014-02-06
    Age : 58
    Location : Cameron, Montana

    Re: SP9 / PH10 custom build

    Post by MontanaWay on Sun Apr 06, 2014 10:14 pm

    deepee99 wrote:Large mushroom spotted just now from our lookouts in Lookout Pass on the Idaho-Montana border. Trust these events are not connected with the ignition of an SP-9.

    http://rt.com/usa/epoch-bison-yellowstone-volcano-909/

    on a completely different note though...that link you provided, the so called mass exodus of animals from Yellowstone Park...lets be realistic, if that super volcano does decide to blow, we'll be dust in a few minutes and so will everyone else within a couple of hundred miles...so why worry!!....I'd rather go out with the first bang than be left behind and fight over scraps of food and whatnot!.....the northern hemisphere will be pretty well screwed, followed by the rest of the planet not so long after!

    MontanaWay

    Posts : 767
    Join date : 2014-02-06
    Age : 58
    Location : Cameron, Montana

    Re: SP9 / PH10 custom build

    Post by MontanaWay on Sun Apr 06, 2014 10:15 pm

    deepee99 wrote:
    MontanaWay wrote:weeeeelllllll...hate to admit it, but I did screw up the transformer wiring, almost double the output voltage than what it should be....not the toroid but a 'standard' transformer.....result, no mushroom cloud, but blown voltage reg & power transistor. Replacement components are coming.
    If I had brains it would be dangerous!.....D'OH!!!!!!!!!

    I will tell the elk and buffalo it's OK to go back to Montana, then. They're messing up our newly-paved streets.

     Smile

    MontanaWay

    Posts : 767
    Join date : 2014-02-06
    Age : 58
    Location : Cameron, Montana

    Re: SP9 / PH10 custom build

    Post by MontanaWay on Sun Apr 06, 2014 10:27 pm

    colin86325 wrote:Wow, she's a beauty Montana! Nicely done.  Hope she sounds so sweet!

    thank you!

    MontanaWay

    Posts : 767
    Join date : 2014-02-06
    Age : 58
    Location : Cameron, Montana

    Re: SP9 / PH10 custom build

    Post by MontanaWay on Thu Apr 10, 2014 12:51 pm

    well I'm hoping that the replacement voltage reg and power transistor arrive today, so that I can finally get the SP9 up and running and connected to my system!
    And yes, I have changed the transformer wiring so now I will get about 260VAC......and not close to 600VAC!!??!!.....what a Schmuck!!

    MontanaWay

    Posts : 767
    Join date : 2014-02-06
    Age : 58
    Location : Cameron, Montana

    Re: SP9 / PH10 custom build

    Post by MontanaWay on Thu Apr 10, 2014 7:43 pm

    NUMBER 5 IS ALIVE!!!!!!!!....there was a movie about that.....
    Well its working, sounds great, no hum, Bass & Treble work really good, even did not mix up the left & right channels!!!
    One thing I did notice, when turning the preamp off, with power amp still on and volume about half way, you can hear a hum start up, split second, then fading away as the preamp 'winds' down, any thoughts?
    I still have the temp attenuator wired up to the ST70, I will remove that tomorrow.

    MontanaWay

    Posts : 767
    Join date : 2014-02-06
    Age : 58
    Location : Cameron, Montana

    Re: SP9 / PH10 custom build

    Post by MontanaWay on Thu Apr 10, 2014 7:52 pm

    deepee99 wrote:
    MontanaWay wrote:NUMBER 5 IS ALIVE!!!!!!!!....there was a movie about that.....
    Well its working, sounds great, no hum, Bass & Treble work really good, even did not mix up the left & right channels!!!
    One thing I did notice, when turning the preamp off, with power amp still on and volume about half way, you can hear a hum start up, split second, then fading away as the preamp 'winds' down, any thoughts?
    I still have the temp attenuator wired up to the ST70, I will remove that tomorrow.

    Put an itty-bitty cap across your on-off switch.

    might be a wee bit of a problem, as I am only switching 'hot'.......might have to switch both, swap over to a DPDT switch.....then I can put a cap across it....

    corndog71

    Posts : 444
    Join date : 2013-03-19
    Location : It can get windy here

    Re: SP9 / PH10 custom build

    Post by corndog71 on Thu Apr 10, 2014 8:02 pm

    Better yet, turn your amp off first.

    deepee99

    Posts : 1260
    Join date : 2012-05-23
    Location : Wallace, Idaho

    Re: SP9 / PH10 custom build

    Post by deepee99 on Thu Apr 10, 2014 8:22 pm

    corndog71 wrote:Better yet, turn your amp off first.
    Yep. Sequence is, preamps on for a bit, then light the after-burners. Opposite sequence shutting down: amps first, then preamps. No thumps.

    MontanaWay

    Posts : 767
    Join date : 2014-02-06
    Age : 58
    Location : Cameron, Montana

    Re: SP9 / PH10 custom build

    Post by MontanaWay on Thu Apr 10, 2014 8:36 pm

    yeah, I shall do that, in any case, I swapped over switches, no switching both L & N with cap across  Very Happy.....thanks for the advise!

    sKiZo

    Posts : 1287
    Join date : 2013-04-01
    Location : Michigan USA

    Re: SP9 / PH10 custom build

    Post by sKiZo on Thu Apr 10, 2014 8:41 pm

    MontanaWay wrote:
    One thing I did notice, when turning the preamp off, with power amp still on and volume about half way, you can hear a hum start up, split second, then fading away as the preamp 'winds' down, any thoughts?

    I get something similar using my Sansui x001 receiver as a preamp. Not sure if it's that or the DAC, but it's just a momentary buzz and then it goes quiet. No evidence of said noise during playback. Wonder if it's just the nature of the beast as the tubes look for a signal they've been getting and all of a sudden aren't. Doesn't happen all the time. I'm also thinking it could be my dbx BoomBox needs a recap. Switching that out kills the noise too.

    Great job BTW ... the best part of any build is firing it up without, like ... firing it up ...

    MontanaWay

    Posts : 767
    Join date : 2014-02-06
    Age : 58
    Location : Cameron, Montana

    Re: SP9 / PH10 custom build

    Post by MontanaWay on Thu Apr 10, 2014 9:09 pm

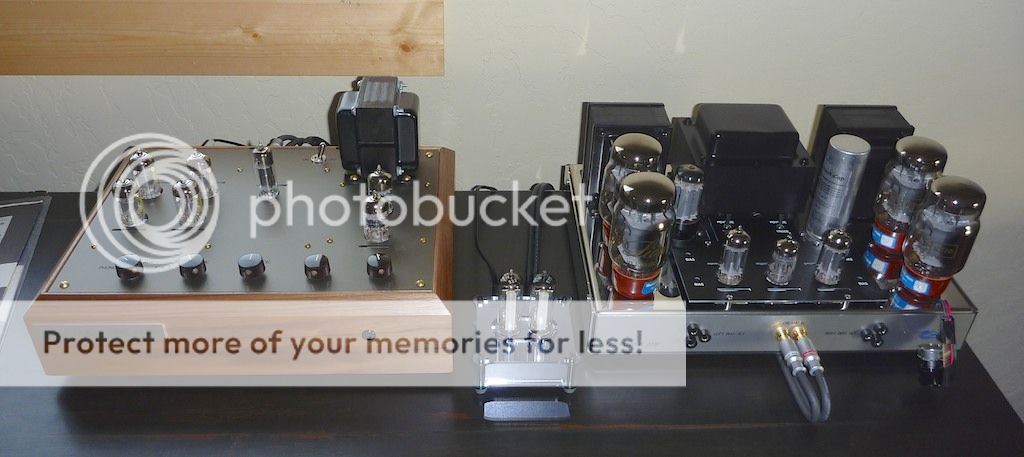

    so here is my current setup....for now  Wink
