    Newbie ST-70 Project: What Modifications have been done? Pics Included!

    Share

    Doctor Hugocat

    Posts : 89
    Join date : 2015-08-19
    Location : Los Angeles CA

    Newbie ST-70 Project: What Modifications have been done? Pics Included!

    Post by Doctor Hugocat on Thu Aug 27, 2015 12:00 am

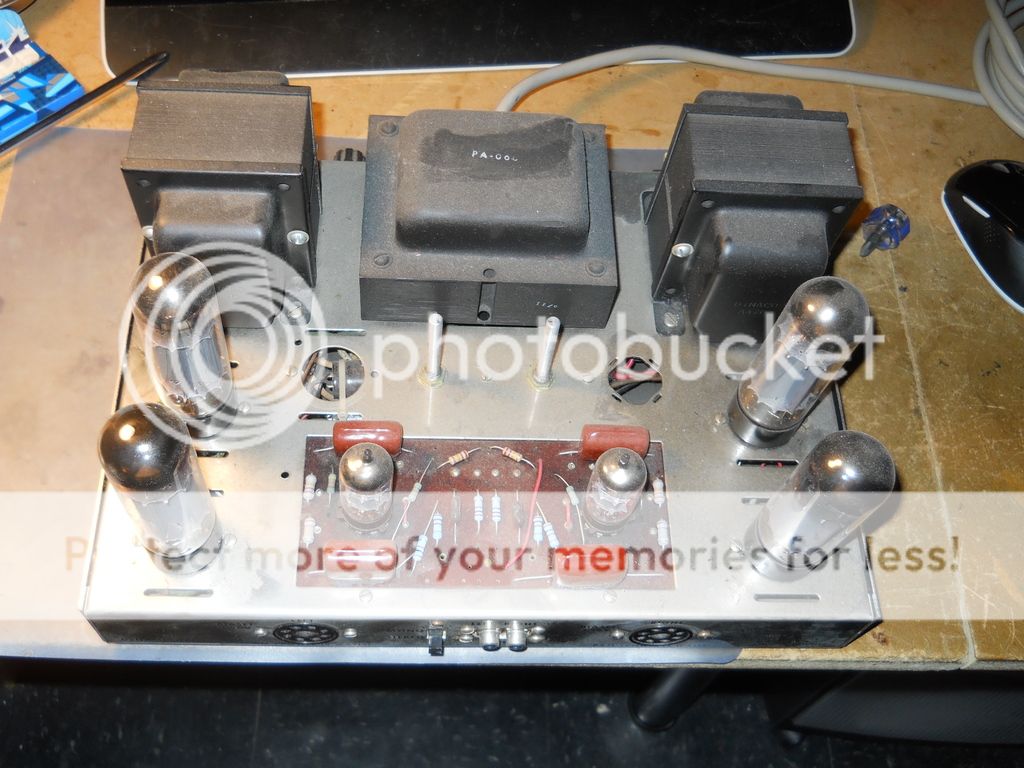

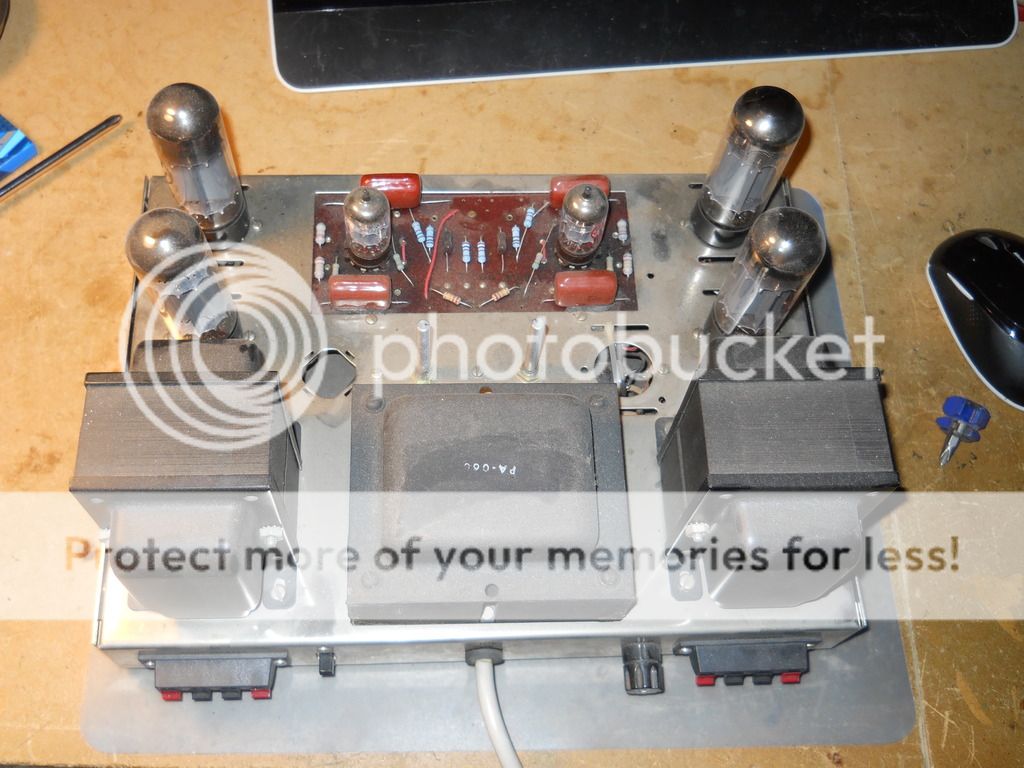

    I’m new to the forum, and would appreciate any advice about my new project. I’d be especially grateful for anyone who could give me a rundown of the modifications that have been made and why they were done. Nothing is too obvious!  Very Happy

    I’ve long been a fan of Dynaco stuff and have owned a couple of tuners, a PAS-3 and a PAT-4. Recently a friend gave me his old ST-70, an amp I’ve always wanted but never been able to afford. He was given it by another friend and never did anything with it.

    I’d like to start the restoration but am a bit lost right now. I have basic electronics skills: I solder well, can read a schematic and have done a bunch of basic audio repairs in the past. But I’ve never worked on tube gear (Danger! Danger!!) and am out of my depth in terms of diagnosing whatever the previous owner did. Hopefully I can use this project to further my knowledge.

    I know I’ll do the following:

    • Replace or restore the driver board: I’m inclined to replace it with the Tubes4hifi ‘Classic’ board. I’ll buy the kit and solder it myself. It may take me a while to raise the $$ but I’ve heard it’s a great mod.

    • Replace the missing multi-section cap. I know that the PO must have found another way to do the circuit, but I’d prefer to restore the wiring to the original. All the caps need doing anyway I guess.

    • Reinstate the rectifier tube. Again, I guess that the PO found a solid-state solution, but I’d like to bring it further back to stock unless you guys advise me otherwise.

    • The filter choke looks like it’s leaked most of its wax out, so I guess that’ll be on the shopping list.

    • Should completely replace the bias circuit components?

    • Replace the spring-loaded speaker terminals. I really hate the ones the PO added!!  Mad

    It’s going to be a massive learning curve: technically it’s out of range of my skills, but if I can find a couple of patient people on the forum I’m sure I can get through it. I downloaded the original build manual and have been looking at as many photos of the original wiring as I can find.

    Any advice is appreciated: I’d love to get this going and then pair it with my PAT-4, which is currently in a long process of modification. But that’s another story…………..

    Thanks in Advance!!








    peterh

    Posts : 679
    Join date : 2012-12-25
    Location : gothenburg, sweden

    Re: Newbie ST-70 Project: What Modifications have been done? Pics Included!

    Post by peterh on Thu Aug 27, 2015 2:04 am

    Sell it on ebay and buy an unmolested one. Or buy a vta-70 from tubes4hifi.

    The mess shown will take your time and cost more money then starting fresh. Selling it
    will reimburse you some money that is better spent with fresh stuff.


    Last edited by peterh on Thu Aug 27, 2015 2:04 am; edited 1 time in total (Reason for editing : spelling)

    kaner

    Posts : 88
    Join date : 2011-09-20

    Re: Newbie ST-70 Project: What Modifications have been done? Pics Included!

    Post by kaner on Thu Aug 27, 2015 9:14 am

    The chassis, the transformers and hopefully the tubes look to be the only salvageable parts. Those, however, are the most expensive parts! If it were me I would keep it. I would highly recommend the VTA board. You will find that Bob's instructions are easy to follow, and well within your skill set. Plus you'll end up with a fabulous sounding amp.

    For the quad cap and other parts you'll need, check out Dynakitparts.com, Antique Electronics Supply or Triode USA. Kevin at Dynakit is particularly helpful. I'm sure there are more but these are the ones I've used.

    Keep us posted!

    Kaner

    MontanaWay

    Posts : 781
    Join date : 2014-02-06
    Age : 58
    Location : Brookings, Oregon

    Re: Newbie ST-70 Project: What Modifications have been done? Pics Included!

    Post by MontanaWay on Thu Aug 27, 2015 10:25 am

    yes, I would keep it too.
    Pretty much a complete tear down, clean the chassis, recover parts such as the tube sockets, transformers and whatever else is salvageable.
    VTA noval driver board, new quad cap, new choke and other parts you wish to upgrade, and start over.
    It will be a good learning exercise for you, and you'll be proud to say that you built this amp when you're listening to tube music! cheers

    Bob Latino
    Admin

    Posts : 2411
    Join date : 2008-11-26
    Location : Massachusetts

    Re: Newbie ST-70 Project: What Modifications have been done? Pics Included!

    Post by Bob Latino on Thu Aug 27, 2015 10:55 am

    I love to see older original Dynaco amps brought back to life in a complete rebuild. I agree what others have said. Remove everything from the chassis and only save the three transformers and the chassis. Use the original Dynaco ST-70 assembly manual as a guide and completely rebuild the amp. Post photos here on this thread (or start a new "rebuild" thread ?) in stages as the amp is rebuilt. Whether you use an original driver circuit (available from Dynakitparts) or a newer design driver circuit like the VTA driver board, would be your choice ...

    Bob

    corndog71

    Posts : 451
    Join date : 2013-03-19
    Location : It can get windy here

    Re: Newbie ST-70 Project: What Modifications have been done? Pics Included!

    Post by corndog71 on Thu Aug 27, 2015 12:09 pm

    I agree with what the others suggest with one exception. Sell that power transformer on ebay and pick up one of the newer and beefier PTs from dynakitparts or Triode USA. It's just the smart thing to do.

    I think either restoring back to the original circuit or going with the new VTA driver are equally good choices however the VTA may get you better sound in the long run.

    Whichever way you choose these are great amps to play with and learn from. Mind the high voltage and stay safe!

    Dale Stevens

    Posts : 77
    Join date : 2014-07-06
    Age : 67
    Location : Loris, SC

    Re: Newbie ST-70 Project: What Modifications have been done? Pics Included!

    Post by Dale Stevens on Thu Aug 27, 2015 3:45 pm

    Hi, Doc; Welcome to our forum.  Keep it! Take it all down, clean the chassis and paint the xformers
    (Bob Latino here recommends the Krylon FUSION satin black, that's what I used). Mount the formers back on the clean chassis w/new feet and you'll be inspired! Part the way there already.  And do make this a build thread for us.   Dale

    Doctor Hugocat

    Posts : 89
    Join date : 2015-08-19
    Location : Los Angeles CA

    Re: Newbie ST-70 Project: What Modifications have been done? Pics Included!

    Post by Doctor Hugocat on Thu Aug 27, 2015 11:01 pm

    Thanks guys!! Nice to hear the encouragement: I'll make a build thread and start with the tear-down.

    I've taken a bunch of photos, so next it'll be dismantling and cleaning of the chassis/transformers Laughing

    Watch this space!!

    j4570

    Posts : 141
    Join date : 2010-08-30

    Re: Newbie ST-70 Project: What Modifications have been done? Pics Included!

    Post by j4570 on Fri Aug 28, 2015 8:57 am

    I concur to gut it and start over. I did just that in 2011. Why would you keep 50 year old wiring, sockets, capacitors and resistors!!??? That's like keeping 50 year old gas line when restoring an old car. Asking for nothing but trouble. I rebuilt mine and got all my parts from Bob. I ended up replacing the power transformer too as it was toast. So all I have original is the chassis, cage, and output transformers. I do think I ordered a different set of output posts (I have two different sets, only used one). I have the VTA classic board. I'd probably go octal today, but I have no complaints about the sound quality. I did install the volume control (attentuator) in place of the mono switch and like it a lot. I run it with NO preamp.

    My recollection is that with the power tranny replacement, I ended up saving nothing on my rebuild. But I left mine with an non restored cage, and a carefully cleaned chassis, I have an AMP that looks 50 years old but performs better than new.

    Jason


    GP49

    Posts : 733
    Join date : 2009-04-30
    Location : East of the sun and west of the moon

    Re: Newbie ST-70 Project: What Modifications have been done? Pics Included!

    Post by GP49 on Sat Aug 29, 2015 12:17 pm

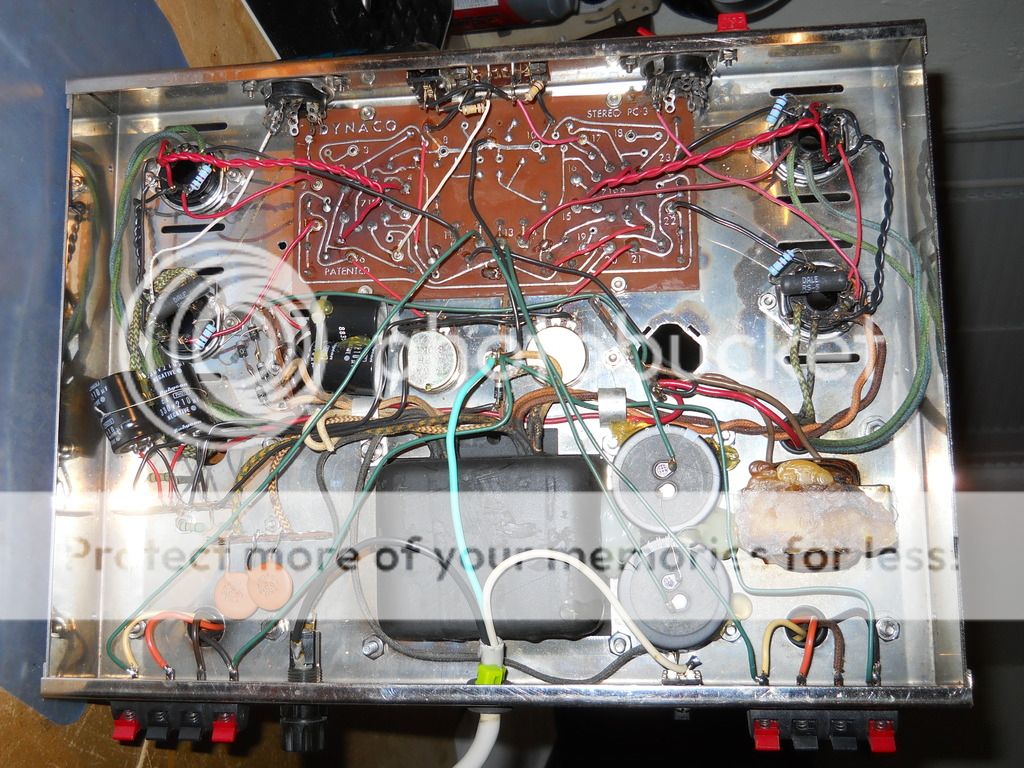

    Somebody has done a modification on the driver board anyway, note the new resistors running willy-nilly on the board. Most such inexpensive modification were by crackpots; so it's best if you toss that and start over with a new one.

    tubes4hifi
    Admin

    Posts : 1286
    Join date : 2008-11-30

    Re: Newbie ST-70 Project: What Modifications have been done? Pics Included!

    Post by tubes4hifi on Sat Aug 29, 2015 6:19 pm

    I concur with the advise everyone else has given. Keep the chassis and transformers, throw the rest away.
    I would also agree to replace the old original power transformer with a new one, as the new ones have better current output
    and run alot cooler. With our VTA driver board, you won't need any new bias components.
    Do buy new tube sockets, new choke, new quad cap, new input RCAs and new speaker terminals.
    Most of that you can buy from my website or from TubesandMore.com
    If you don't have a manual you can download one for free here: www.tubes4hifi.com/downloads.htm

    Doctor Hugocat

    Posts : 89
    Join date : 2015-08-19
    Location : Los Angeles CA

    Re: Newbie ST-70 Project: What Modifications have been done? Pics Included!

    Post by Doctor Hugocat on Mon Aug 31, 2015 7:17 pm

    GP49 wrote:Somebody has done a modification on the driver board anyway, note the new resistors running willy-nilly on the board. Most such inexpensive modification were by crackpots; so it's best if you toss that and start over with a new one.
