    VTA ST-120 amp square wave photos ..

    Bob Latino
    Bob Latino
    Admin


    Posts : 3260
    Join date : 2008-11-26
    Location : Massachusetts

    VTA ST-120 amp square wave photos .. Empty VTA ST-120 amp square wave photos ..

    Post by Bob Latino Fri Dec 13, 2013 6:44 pm

    I had someone Email and ask me about testing VTA amps for distortion and square waves. First of all square waves do not correlate directly with good sound from an amp. Case in point > Solid state amps usually give excellent square waves when tested, yet many solid state amps don't necessarily sound that good. What square waves do relate to is an amp's bandwidth and SS amps usually have a wider bandwidth than tube amps.

    A few years ago I had a friend with the proper gear test my own personal VTA ST-120 (with both cap upgrades). As part of the test he ran a function generator into one channel of the ST-120 and used a 100 watt non-inductive resistor for a load. He set the input to give about 20 watts out (about 1/3 power). I had my camera and took photos of the square wave output on the screen of a Sencore SC-6 oscilloscope at various frequencies. Below are the photos for the 7 frequencies that he chose > 20 Hz, 100 Hz, 500 Hz, 1 KHz, 5 KHz, 10 KHz and 20 KHz. You can see that the input on the oscilloscope is not perfectly at those frequencies because as the function generator warmed up, the frequencies drifted very slightly above and below the target frequency. I was told that in order to produce a near perfect square wave, the amp must have a fairly flat bandwidth of 1/10th to 10 X the target frequency being tested. IOW to produce a near perfect 20 Hz square wave the bandwidth of the amp must extent from about 2 Hz (!) to 200 Hz. Well the VTA ST-120 doesn't produce a 2 Hz frequency at any level high enough to really contribute to the bandwidth. Same thing for the 20 KHz square wave photo. It's kind of lumpy because the bandwidth of the amp does not extend out to 200,000 Hz. There is still good output on the VTA ST-120 to about 40,000 Hz but only a bat could really comment on that. See photos below ...

    Bob


    VTA ST-120 square waves

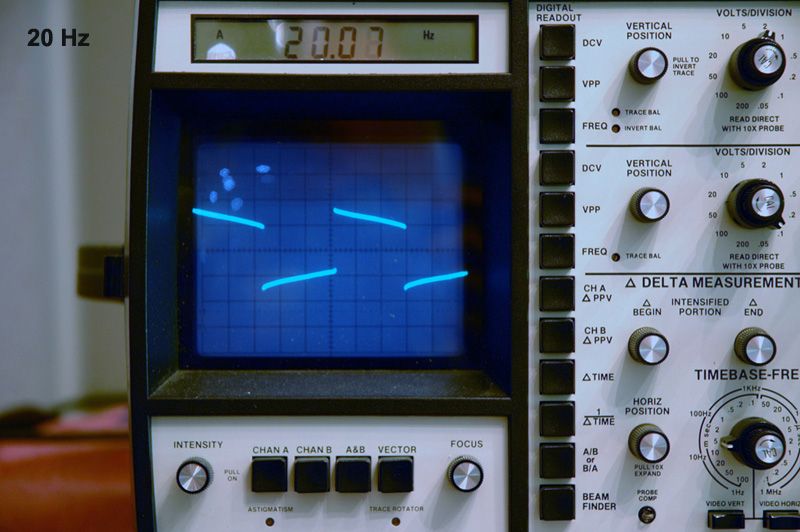

    VTA ST-120 amp square wave photos .. 20HZ_800_TEXT_zps662d9097

    VTA ST-120 amp square wave photos .. 100HZ_800_TEXT_zps75ed87cc

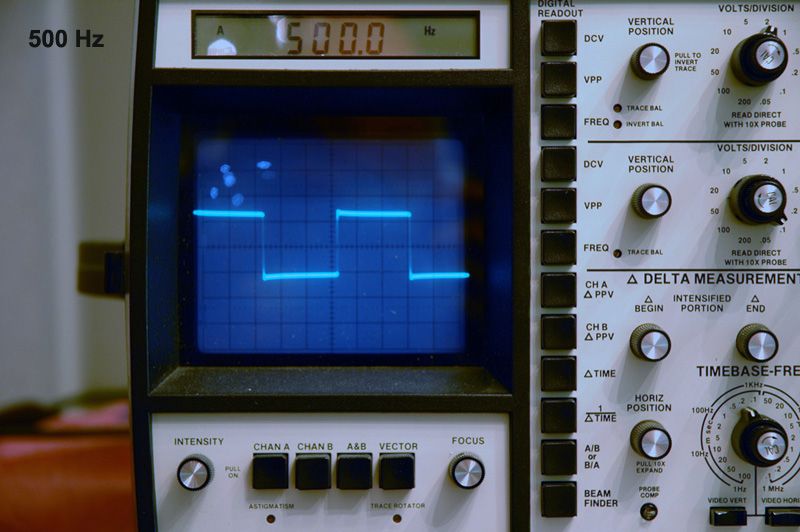

    VTA ST-120 amp square wave photos .. 500HZ_800_TEXT_zps1ec11a2d

    VTA ST-120 amp square wave photos .. 1KHZ_800_TEXT_zpsdf248146

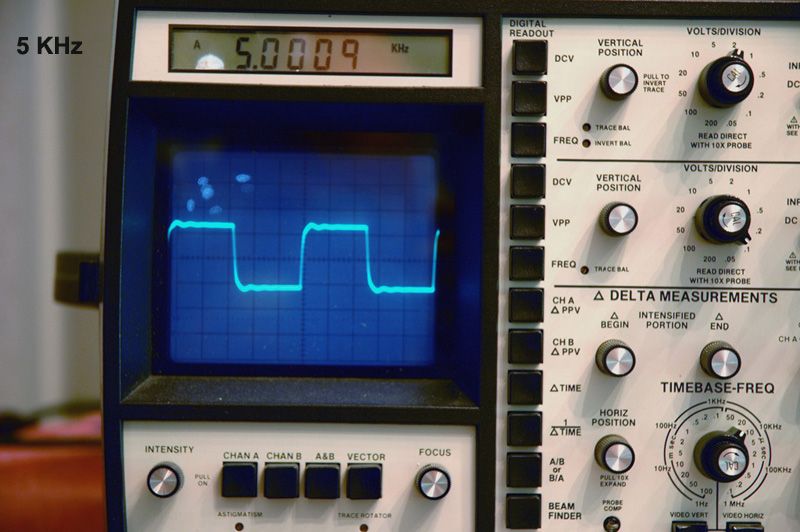

    VTA ST-120 amp square wave photos .. 5KHz_800_TEXT_zpseeabdece

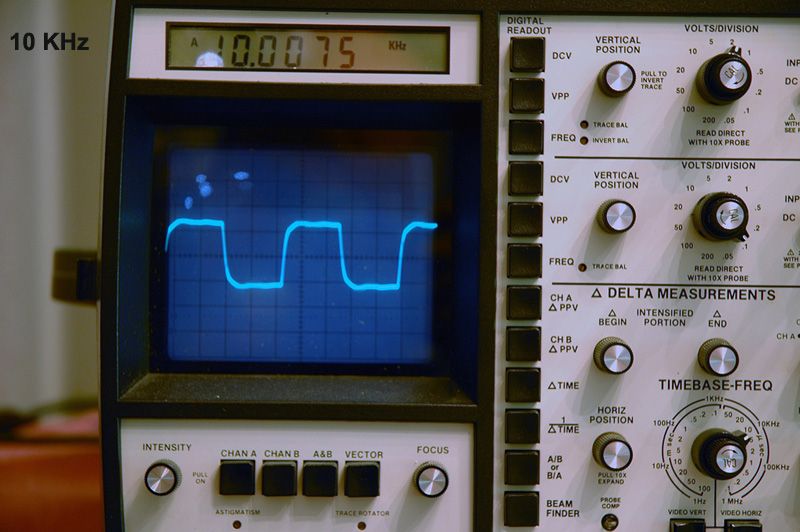

    VTA ST-120 amp square wave photos .. 10KHz_800_TEXT_zps1910d762

    VTA ST-120 amp square wave photos .. 20KHZ_800_TEXT_zps1842c117
    avatar
    sailor


    Posts : 269
    Join date : 2011-04-04

    VTA ST-120 amp square wave photos .. Empty Re: VTA ST-120 amp square wave photos ..

    Post by sailor Fri Dec 13, 2013 11:02 pm

    Bob I think the 20K looks great. I have heard that push/pull tube amps tend to be harsh if the bandwidth is to high. Also, there is only a handful of tweeters out there that could even come close to producing that good of a square wave at 20K. Maybe a ribbon or beryllium tweeter and that's about it. I think I heard back in the 70's that Decca claimed that there ribbon tweeter was the only tweeter that could produce a square wave. Most tweeters the square wave looks more like a sine waves at 20K.
    arledgsc
    arledgsc


    Posts : 494
    Join date : 2012-11-30
    Age : 70
    Location : Santa Rosa CA

    VTA ST-120 amp square wave photos .. Empty Re: VTA ST-120 amp square wave photos ..

    Post by arledgsc Sat Dec 14, 2013 12:38 am

    I think the square wave response looks very good!  20W is a healthy output and it appears the amp gradually rolls off above 30kHz.  Otherwise 20kHz would look more like a sine wave.  I'm impressed!    Cool
    sKiZo
    sKiZo


    Posts : 1530
    Join date : 2013-04-01
    Location : Michigan USA

    VTA ST-120 amp square wave photos .. Empty Re: VTA ST-120 amp square wave photos ..

    Post by sKiZo Sun Dec 15, 2013 8:33 pm

    Neet!

    I've been meaning to do some tests on mine to see how it's doing. The pics will give me some nice benchmarks. Just got a Tenma signal generator that should do the job nicely. It gets very good reviews for the money ... I just plugged it direct to the scope and got some very clean wave patterns.

    VTA ST-120 amp square wave photos .. 41mUnu1JllL

    I get the beast down to the bench, I'll also replace those dang bias pots ... again. The dang Fender pots I replaced the dang Chinese pots with apparently have some dang custom winding that gets dang crowded and twitchy right where I need the most dang fine control. Dang! I suppose I could just wire em up backwards, but ... I got some guaranteed true linear pots instead. Hopefully, once those are in, it'll be my last dang dang on the subject ...
