    PAS-3 Upgrade

    sandy
    sandy


    Posts : 36
    Join date : 2011-03-04
    Age : 61
    Location : Los Angeles, CA

    PAS-3 Upgrade Empty PAS-3 Upgrade

    Post by sandy Sat Aug 13, 2011 11:27 pm

    Here we go again Smile

    I picked up a rough shape PAS-3 from E-PAY and got something a bit less then I bargained for (weathered, etc). Pictures really hide a lot of out door aging... Moving on Smile

    In trying out out with the hopes that it at least worked, those dreams were left far behind after only one channel seemed functional. The odd part is the guts looked very clean, so might have been something minor, but that's enough to start the ball rolling.

    Ordered the PAS-3 upgraded kit from Roy with tone controls, new volume, balance, and selector switch. Also got the new back panel for better RCA jack. I had an old power supply update board for another PAS-3 that I didn't use, so it's making a home into this one. Most all of the hardware had rust on it, so ordering some new stuff from McMaster Carr.

    The outside of the case was painted black over the brown over the gold from what it seems. So starting with that I hit it with some elbow grease and got the surface smother and shot some black primer. Then thinking either wrinkle paint of hammertone to cover up the mess. I gave a black hammertone finish a try and it came out OK, not sure if too glossy but looks worlds better.

    Before the Hack Job...
    PAS-3 Upgrade Imag0510

    PAS-3 Upgrade Imag0511

    With the Power Supply upgrade installed. Old boards still.
    PAS-3 Upgrade Imag0512

    Now gutted of the old controls and back panel of connectors
    PAS-3 Upgrade Imag0513

    Scrap Yard of Parts (Note Pencil Sharpener was not in the PAS-3)
    PAS-3 Upgrade Imag0514

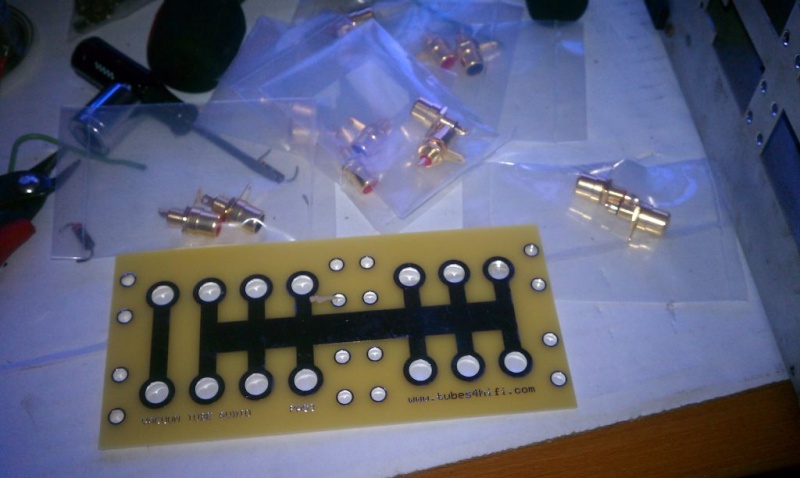

    On to the new back panel of RCA Jacks.
    PAS-3 Upgrade Imag0515
    PAS-3 Upgrade Imag0516

    Thanks and that's all for now, next will be PCB assembly of the Preamp board.

    Sandy
    sandy
    sandy


    Posts : 36
    Join date : 2011-03-04
    Age : 61
    Location : Los Angeles, CA

    PAS-3 Upgrade Empty Re: PAS-3 Upgrade

    Post by sandy Thu Aug 25, 2011 1:53 am

    Received all the hardware from McMaster Carr, removed all the 4-40 rusty screws and replaced with stainless and matching stainless hardware. Same for the AC power plugs that were rusty too. I/O board installed. Too hot to start working on the main pre-amp board.

    >> Anyone have an idea if the small black AC power jacks still available? I have a couple in bad looking shape? Mouser has some that are too wide for the screw mounts and couldn't find a source from the usual places I found on the web.

    Sandy


    Luddite
    Luddite


    Posts : 233
    Join date : 2009-02-04
    Age : 73
    Location : Texas

    PAS-3 Upgrade Empty Re: PAS-3 Upgrade

    Post by Luddite Thu Aug 25, 2011 10:05 am

    sandy wrote:Received all the hardware from McMaster Carr, removed all the 4-40 rusty screws and replaced with stainless and matching stainless hardware. Same for the AC power plugs that were rusty too. I/O board installed. Too hot to start working on the main pre-amp board.

    >> Anyone have an idea if the small black AC power jacks still available? I have a couple in bad looking shape? Mouser has some that are too wide for the screw mounts and couldn't find a source from the usual places I found on the web.

    Sandy



    Sandy,

    You might check with Kevin (dynakitparts@aol.com). He will be offering a reproduction PAS chassis soon and has been researching the various hardware parts. Hopefully he has found a source for replacement AC receptacles.

    Best Regards,
    Charlie
    DynakitParts
    DynakitParts


    Posts : 215
    Join date : 2008-11-30

    PAS-3 Upgrade Empty PAS AC Outlets

    Post by DynakitParts Thu Aug 25, 2011 2:22 pm


    Sandy,
    Unfortunately,the original PAS AC outlets are
    unobtainable.One option is to use the sockets you have
    or try to source these through Ebay.

    Kevin @ Dynakit

    sandy
    sandy


    Posts : 36
    Join date : 2011-03-04
    Age : 61
    Location : Los Angeles, CA

    PAS-3 Upgrade Empty Re: PAS-3 Upgrade

    Post by sandy Fri Aug 26, 2011 3:01 pm

    Thanks Charlie/Kevin,

    I will just live then them, might flip them over to hide the cracks but looks like they are in for the long run.

    Kevin are you going to be offering a Pas3 kit (If you can say)?

    Sandy
    DynakitParts
    DynakitParts


    Posts : 215
    Join date : 2008-11-30

    PAS-3 Upgrade Empty PAS Chassis Kit

    Post by DynakitParts Wed Aug 31, 2011 9:02 am

    Sandy,
    Yes...a PAS chassis kit is in the works. Expect
    this will be available in about (4) weeks. I will post
    a few photos once the faceplates are in hand.

    I will have (100) units available...

    Please buy one or more. LOL

    Regards,

    Kevin @ Dynakit
    sandy
    sandy


    Posts : 36
    Join date : 2011-03-04
    Age : 61
    Location : Los Angeles, CA

    PAS-3 Upgrade Empty Re: PAS-3 Upgrade

    Post by sandy Wed Aug 31, 2011 12:41 pm

    DynakitParts wrote: Sandy,
    ... I will have (100) units available...

    Please buy one or more. LOL

    Kevin @ Dynakit

    Likely would have been a better way to go then the EBay Junk I got (It's getting a face lift at least)...

    Looking forward to it!

    Sandy
    sandy
    sandy


    Posts : 36
    Join date : 2011-03-04
    Age : 61
    Location : Los Angeles, CA

    PAS-3 Upgrade Empty Re: PAS-3 Upgrade

    Post by sandy Sun Sep 18, 2011 10:25 pm

    Back to work on some fun projects...

    Finished up Roy's TCLA board for the PAS3, looks pretty good, some caps lead spacing needed to be fitted a bit, but all in all a nice layout.

    PAS-3 Upgrade Tcla10
    Westy56
    Westy56


    Posts : 58
    Join date : 2011-05-09
    Location : Albuquerque

    PAS-3 Upgrade Empty Re: PAS-3 Upgrade

    Post by Westy56 Mon Sep 19, 2011 9:34 am

    Sandy, that looks top notch.
    Nice job. Cool


    Steve
    sandy
    sandy


    Posts : 36
    Join date : 2011-03-04
    Age : 61
    Location : Los Angeles, CA

    PAS-3 Upgrade Empty Re: PAS-3 Upgrade

    Post by sandy Mon Sep 19, 2011 11:13 pm

    Thanks Steve, need to get more time to work on all these projects! Have to get working on the Grommes Clone (EZ260) that I'm working on, among other projects Wink

    Sandy
    sandy
    sandy


    Posts : 36
    Join date : 2011-03-04
    Age : 61
    Location : Los Angeles, CA

    PAS-3 Upgrade Empty Re: PAS-3 Upgrade

    Post by sandy Mon Jul 16, 2012 2:44 am

    Ok, finished some Power Amps, and now need to get cracking on the PAS-3 upgrade. Been a while, so will start with an easy one, wiring up the I/O ports to the selector switch and will move forward from that point. Here are some pics of that progress...

    PAS-3 Upgrade Right_11

    PAS-3 Upgrade Right_13

    PAS-3 Upgrade Right_14
    hawaii.ken
    hawaii.ken


    Posts : 157
    Join date : 2012-01-31

    PAS-3 Upgrade Empty Re: PAS-3 Upgrade

    Post by hawaii.ken Mon Jul 16, 2012 8:37 am

    PM sent for Sandy
