    A little known Dynaco ST-70 type amp was the Hammond AO-58-1 amp. This was a hard wired clone of a Dynaco ST-70 amp and was used in the 1960's in a number of Hammond Organs. The circuitry was licensed to Hammond by Dynaco but the amp had a number of differences.

    1. There was no driver board - all the circuitry was hard wired
    2. The chassis was not nickel plated
    3. The power transformer was not "sunk in" like on the Dynaco ST-70
    4. The three transformers used were not Dynaco transformers

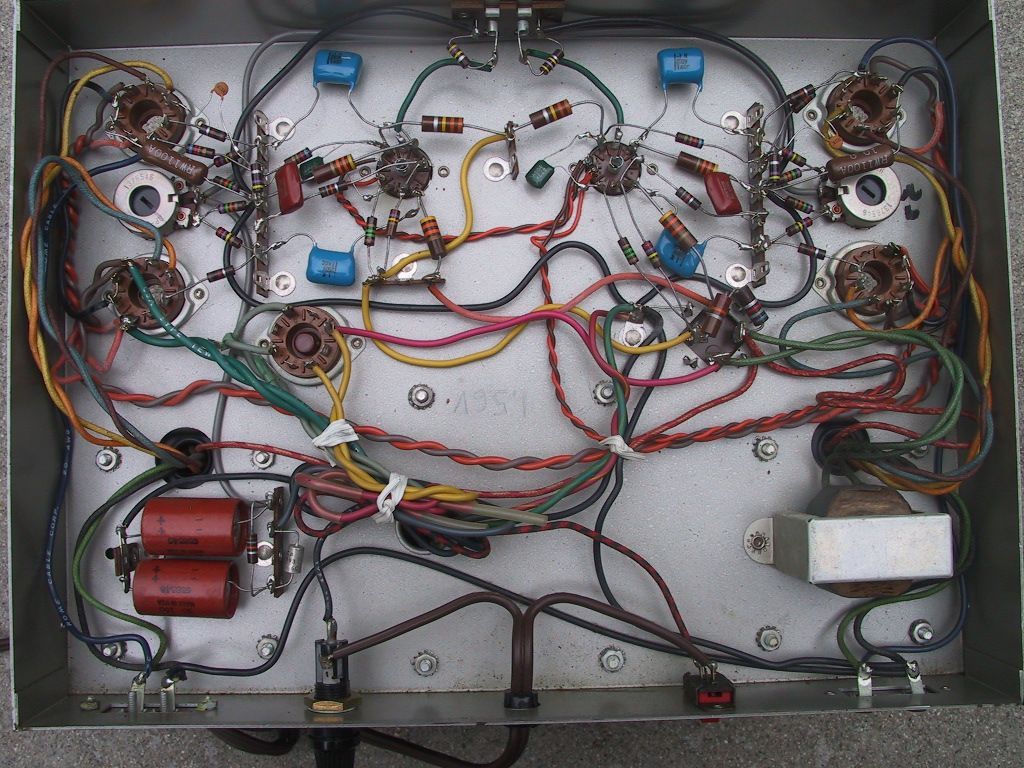

    5. No front tube sockets to measure bias. You had to take the bottom cover off and adjust the two bias pots from inside the amp. The bias pots were between the two output tubes and were attached to the inside of the amp with twist tabs in slots on the top of the amp.
    6. There was only a single 8 ohm tap to go to your speakers
    7. There appears to be a diode for the negative DC bias circuit. Dynaco always used a selenium rectifier here.

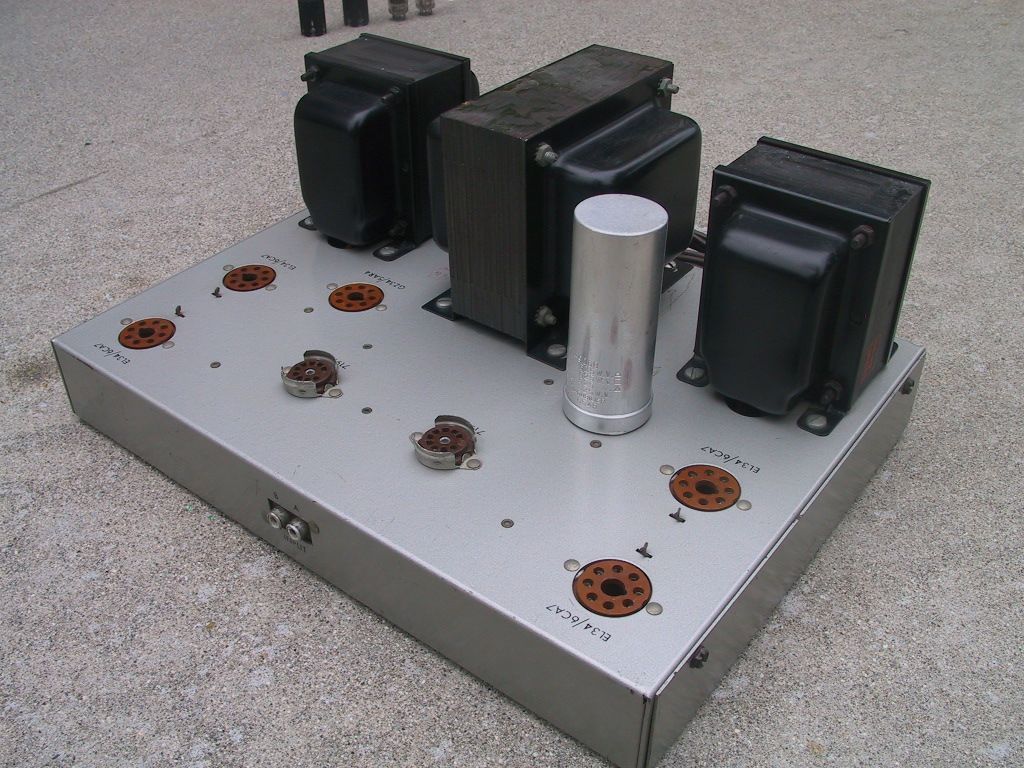

    Photos below ...

    Bob

    The Hammond AO-58-1 > A hard wired Dynaco ST-70 clone from the 1960's DynaSS75_1T1_zps5urmfgei

    The Hammond AO-58-1 > A hard wired Dynaco ST-70 clone from the 1960's DynaSS75_1T5_zpsfyv5wai8

    The Hammond AO-58-1 > A hard wired Dynaco ST-70 clone from the 1960's DynaSS75_1T16_zpseu3mhr3j
