The second choke in the ST120 is held in by one screw and sits a little cockeyed in the picture. Has anyone drilled the chassis so it mounts straight and even with the other choke?
5 posters
ST120 second choke mounting
Mr C- Posts : 99
Join date : 2019-07-11
Age : 69
Location : Visalia CA.
New2Tubez- Posts : 185
Join date : 2018-03-20
Location : NY
Someone on Bob's FB page did this:
https://www.facebook.com/vta.amp.kits/photos/a.723510914424108/1387354951373031/?type=3&theater
While I didn't change the mounting of the choke, I did use this build as a reference.
https://www.facebook.com/vta.amp.kits/photos/a.723510914424108/1387354951373031/?type=3&theater
While I didn't change the mounting of the choke, I did use this build as a reference.
Mr C- Posts : 99
Join date : 2019-07-11
Age : 69
Location : Visalia CA.
Okay, Looks like you'd have to drill two holes. One for the choke and one to move the three lug terminal strip over. Certainly looks cleaner. Only thing is Bob doesn't include any extra screws.. Lol.. I'm at the point where I can make that mod. I'll think about it. Yea did see that picture already but didn't look at it closely. I haven't done the chassis wiring yet. Very nice. I'll print it out for reference.
Bob Latino- Admin
- Posts : 3276
Join date : 2008-11-26
Location : Massachusetts
Mr C wrote:The second choke in the ST120 is held in by one screw and sits a little cockeyed in the picture. Has anyone drilled the chassis so it mounts straight and even with the other choke?

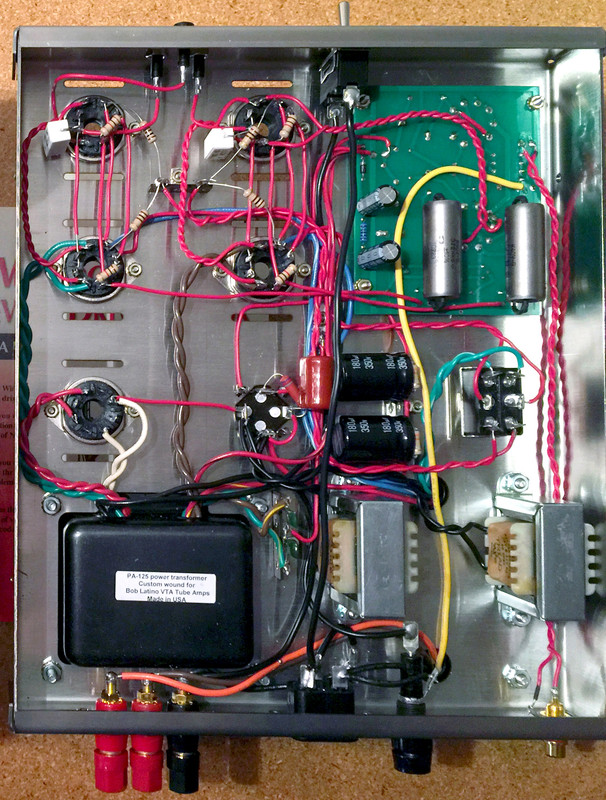

The design concept behind the VTA ST-120 was to fit a 60 watt per channel stereo amp into the chassis space of the original Dynaco ST-70. Neither the original Dynaco ST-70 or the VTA ST-70 need an extra choke. The VTA ST-120 (and the VTA M-125 AMPS) use two chokes because THEY HAVE higher current demands through the high voltage system. The choke being held by one screw or the choke being at a slight angle on the ST-120 is no problem. Note that the VTA M-125 is a new design and is a not a copy of any other tube amp and does have both chokes held by two screws and does have the two chokes parallel to each other. See M-125 wiring photo below.
Bob
HarryY- Posts : 46
Join date : 2019-07-24
Location : NY
On my ST-120 I installed the transformer in the position shown in the instructions.
but I did put a small piece of double sided tape under the second screw hole and
a rubber pat on the top so it would sandwich it tight in the chassis,
I was tempted to drill it but thought if I do it may be difficult to
install the delay board in the future if I change over to a SS rectifier.
but I did put a small piece of double sided tape under the second screw hole and
a rubber pat on the top so it would sandwich it tight in the chassis,
I was tempted to drill it but thought if I do it may be difficult to
install the delay board in the future if I change over to a SS rectifier.
Mr C- Posts : 99
Join date : 2019-07-11
Age : 69
Location : Visalia CA.
Yea, I understood that it was that way to fit in the ST70 chassis. I was staring at and the thought went through my mind that if I drilled an extra hole it would sit even with the other choke. I see now the terminal strip would need to be relocated also. Just a thought.
StevieRay- Posts : 67
Join date : 2009-01-09
Age : 62
Location : Central VA
It will stay put just fine; don’t sweat over it.
Besides, drilling that pretty stainless chassis is a PITA, and if you make a mistake it will be unsightly, costly, or both.
Besides, drilling that pretty stainless chassis is a PITA, and if you make a mistake it will be unsightly, costly, or both.
